Tar River ZGR Series Rotary Rake

ZGR-360 Transparent

Tar River Implement's Single Rotary Rake comes standard with hydraulic height adjustment and heavy tubular tine arms that are foldable for transport. The ZGR-420 has 11 rotor arms that cleanly sweep all hay types in any condition. Wide angle constant velocity PTO shaft come standard. Replaceable wheel hubs ensure transportation is not a problem. The gentle raking action ensures high nutrient leaves remain on the crop in the bale, not in the field. The ZGR-360 is a 3-point version with a 9 arm gearbox for use in tighter areas where a pull-type will not allow you to reach all areas of the field.

  • High Flotation 15x6.0-6 Tires, ZGR-360
  • High Flotation 18.850-8 Tires, ZGR-420
  • 11'10" Working Width, ZGR-360
  • 13'9" Working Width, ZGR-420
  • Thick-walled, tubular tine arms
  • Heavy-Duty, sealed oil bath gearbox

  • Strong & Heavy Frame to prevent bouncing
  • Standard Tandem Axle
  • Foldable Tine Arms
  • Hydraulic Transport Lift, ZGR-420
  • Wide Angle (CV Joint), ZGR-420

Downloads

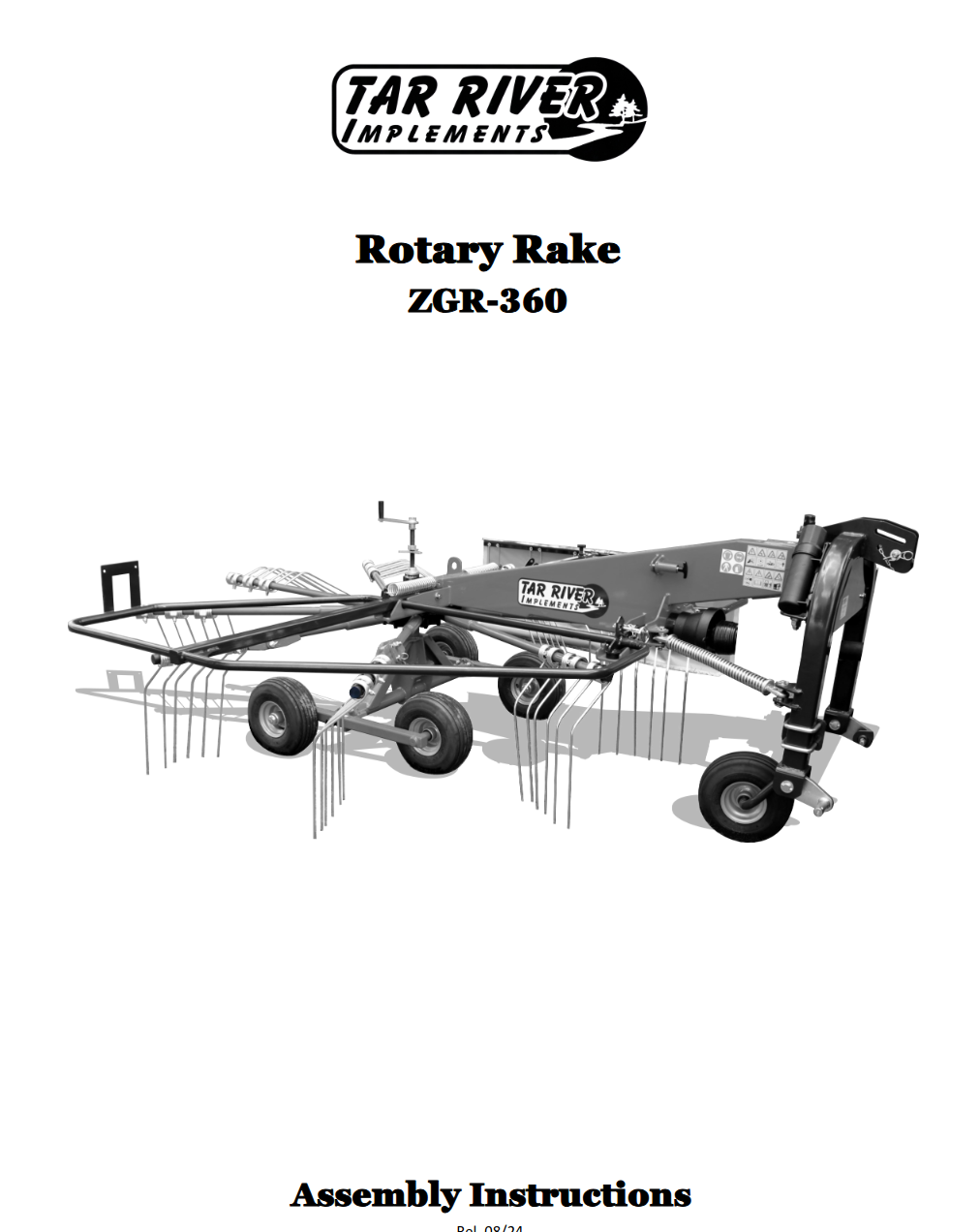

ZGR-360 Rotary Rake Assembly Instructions.pdf

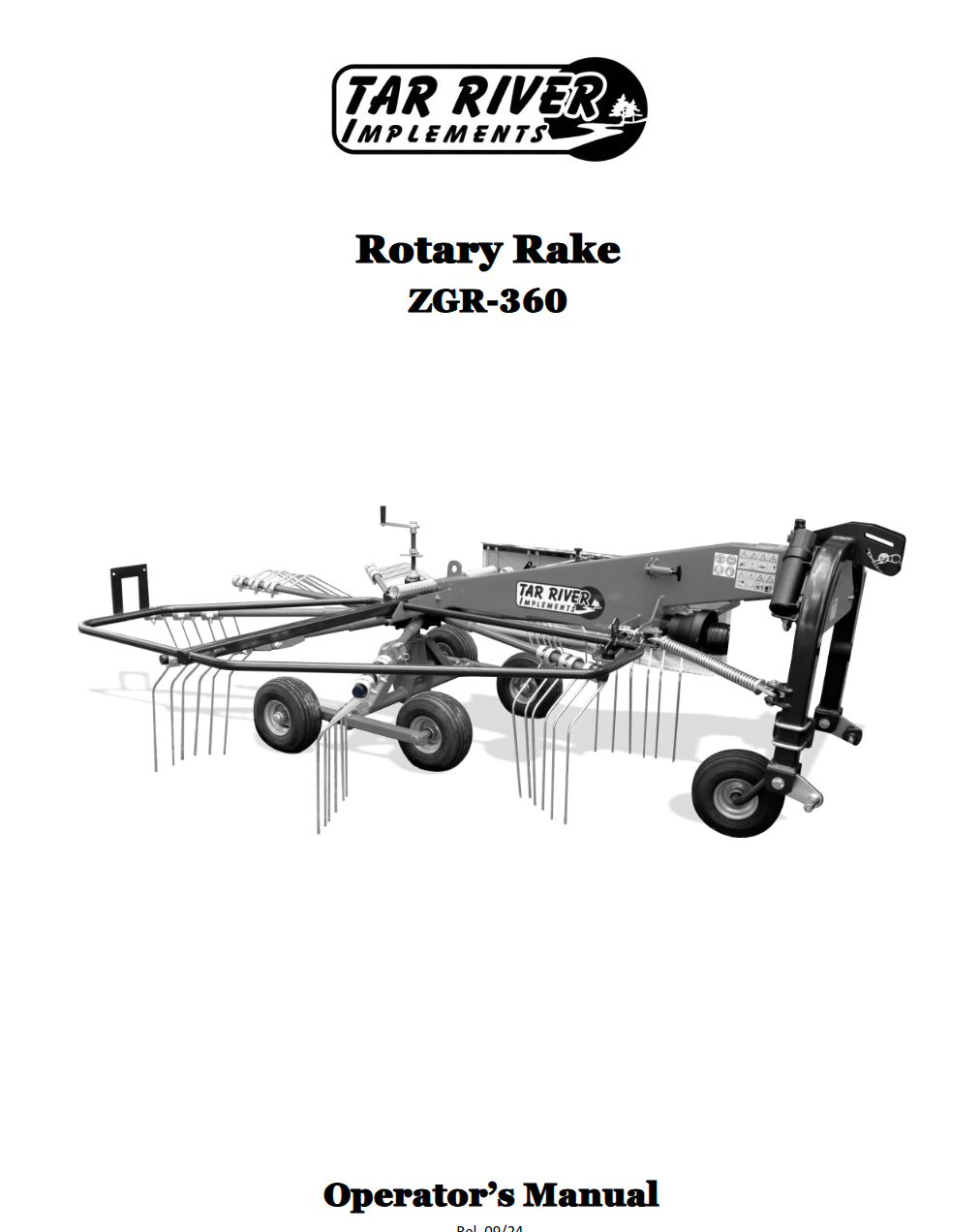

ZGR-360 Rotary Rake Manual_0.pdf

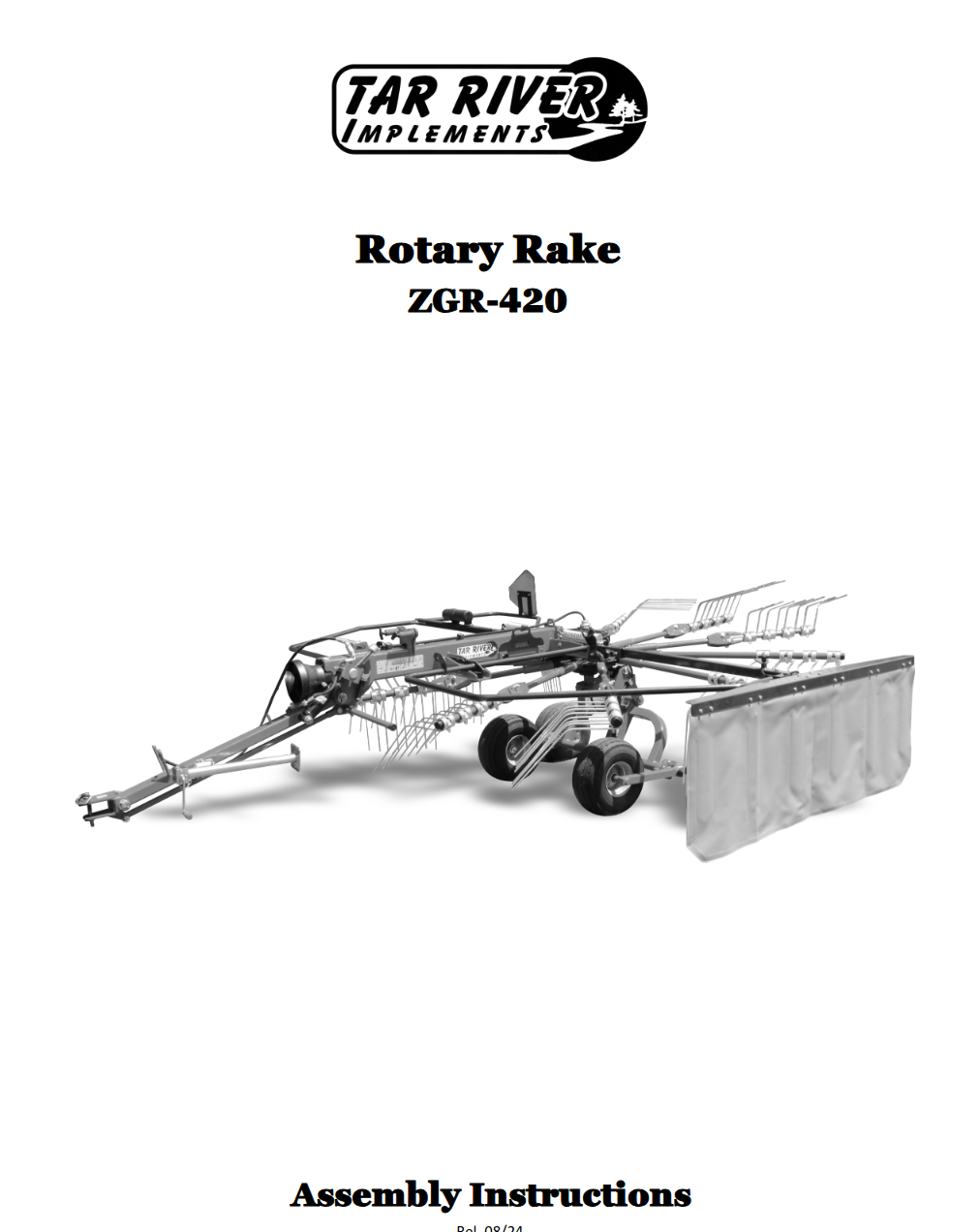

ZGR-420 Rotary Rake Assembly Instructions.pdf

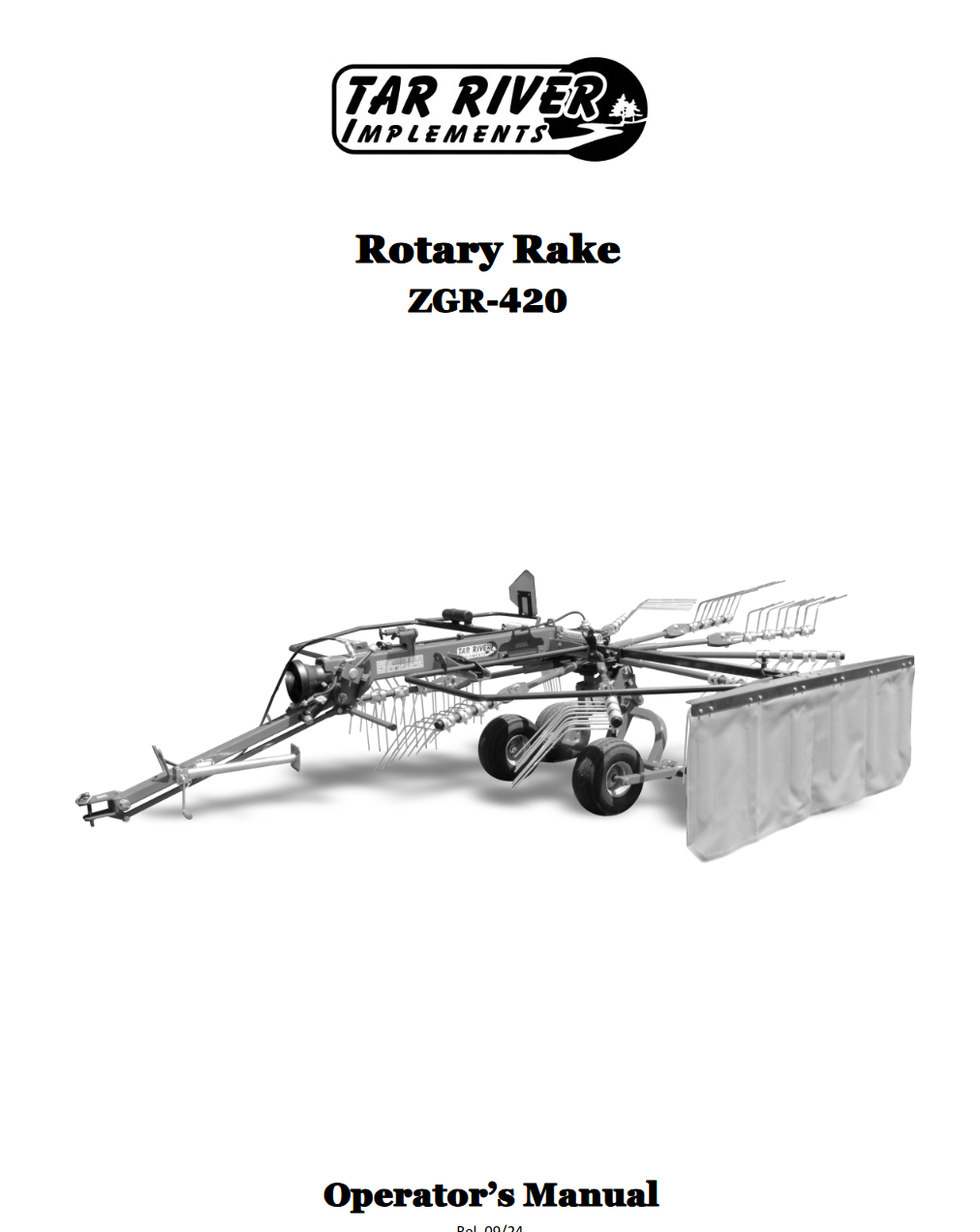

ZGR-420 Rotary Rake Manual.pdf

Models

Model Working Width Lift Windrow Min. HP Tine Arms Tines Weight
ZGR-360 11' 10" Hydraulic Side 30 9 27 1,257 lbs.
ZGR-420 13' 9" Hydraulic Side 30 11 44 1,489 lbs.
