Tar River Rear Blades

Tar River Implements offers a full line of rear blades to fit your entire needs.
Additional Information
From the Lighter Standard Duty 60" blade for simple grading jobs all the way up to the 6-way Heavy Duty with Hydraulic Tilt, Angle and Offset in an 9' version for your toughest jobs. Available in 3 models, Standard, Medium and Heavy Duty.
Other Characteristics
Hydraulic Angling Cylinder Comes Standard on BRB-9 Series
Available Options
Please note: BRB-2 Series Standard Duty blades come 2 per crate and must be ordered in pairs., Optional Hydraulic Cylinder Kit for Tilt (on BRB-9 Series) (BRB-009HC)
Specifications
Model Working Width M. Board Height M. Board Thickness M. Board Offset M. Board Angle & Tilt Max HP Weight Lbs

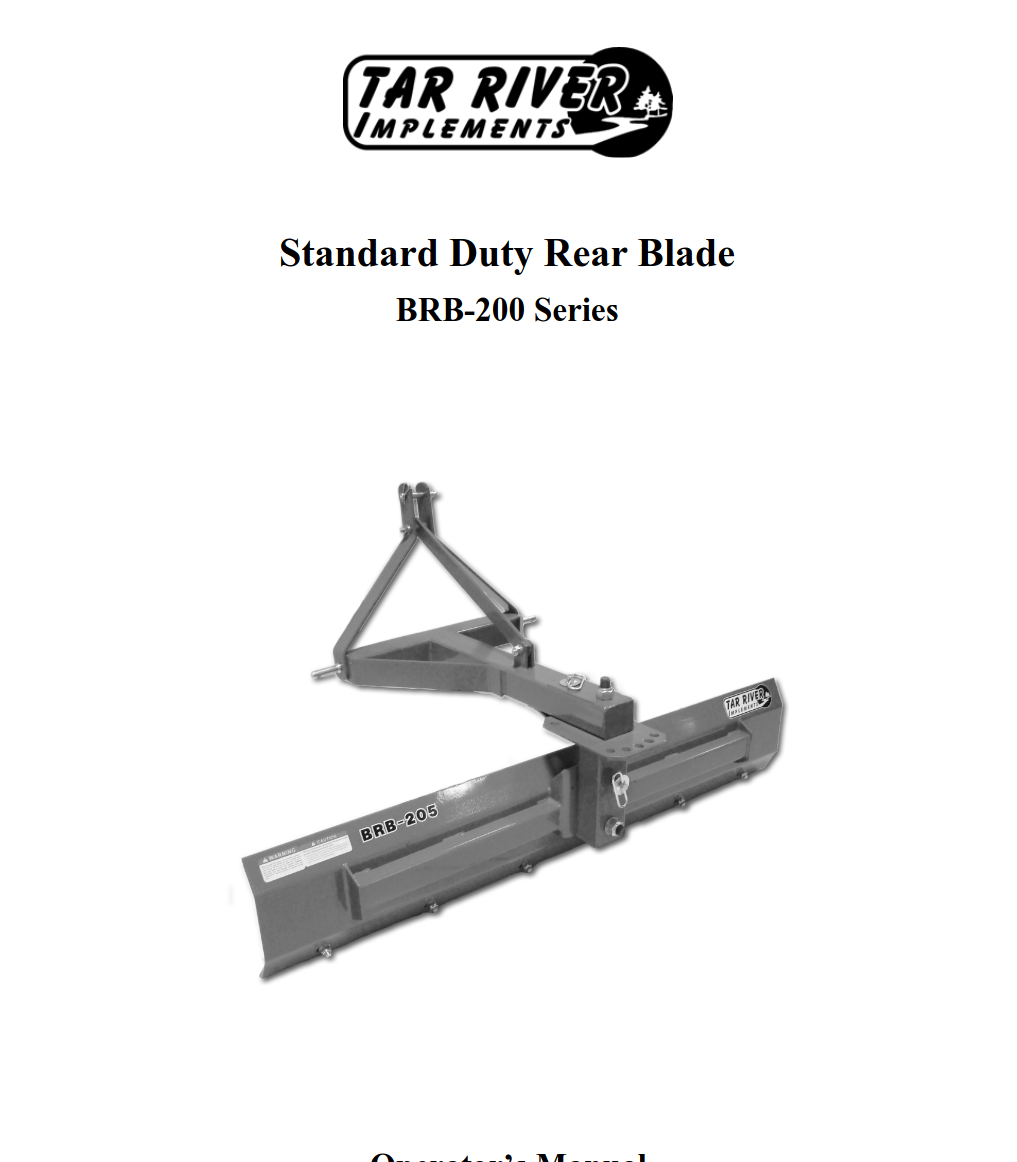

Standard Duty Economy
BRB-205 60" 14" 1/4" N/A Yes 40 190
BRB-206 72" 14" 1/4" N/A Yes 40 216
BRB-207 84" 14" 1/4" N/A Yes 40 243

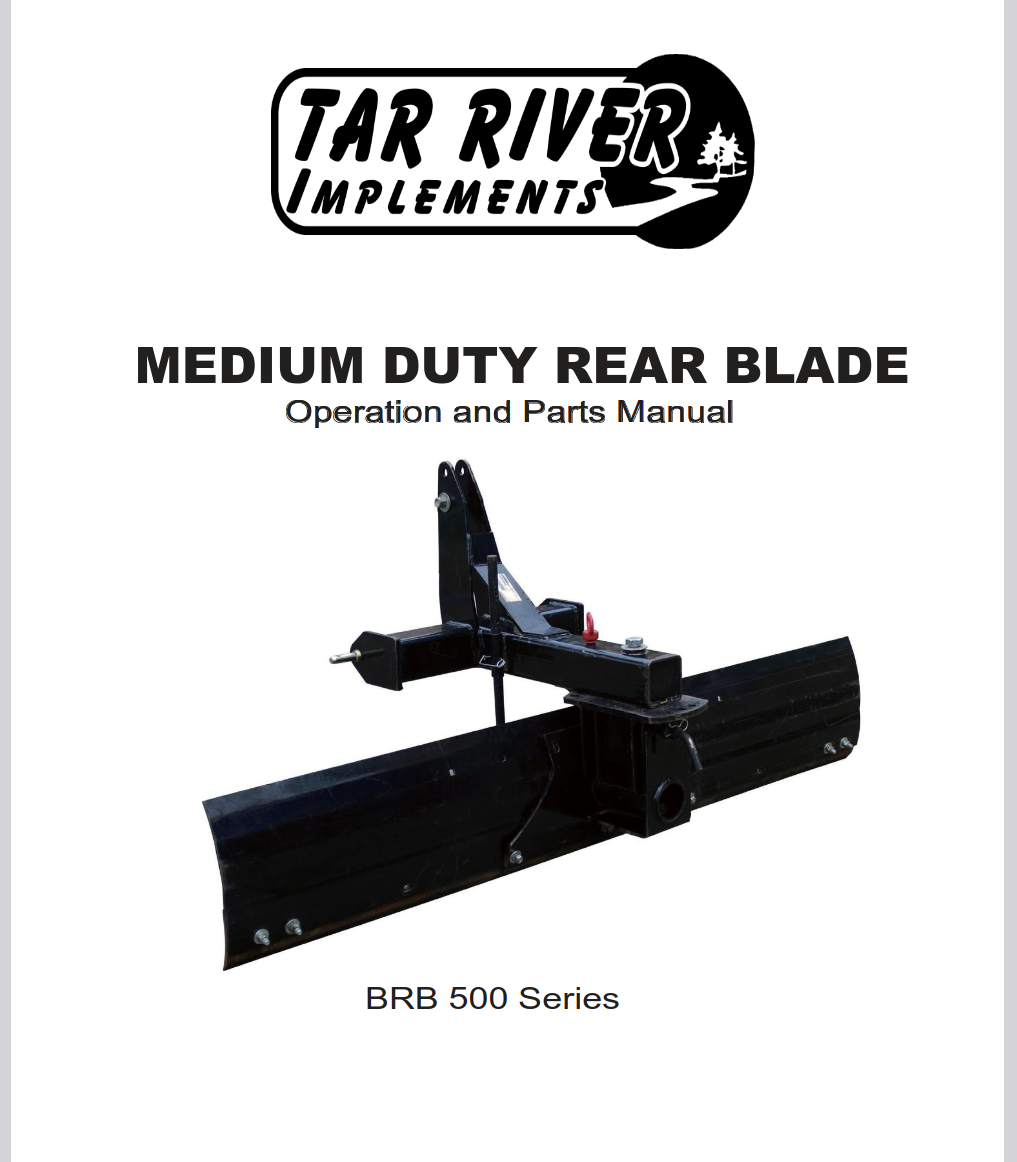

Medium Duty 6-Way
BRB-506 72" 13" 1/4" Yes Yes 60 333
BRB-507 84" 13" 1/4" Yes Yes 60 355
BRB-508 96" 13" 1/4" Yes Yes 60 377
6-Way Heavy Duty

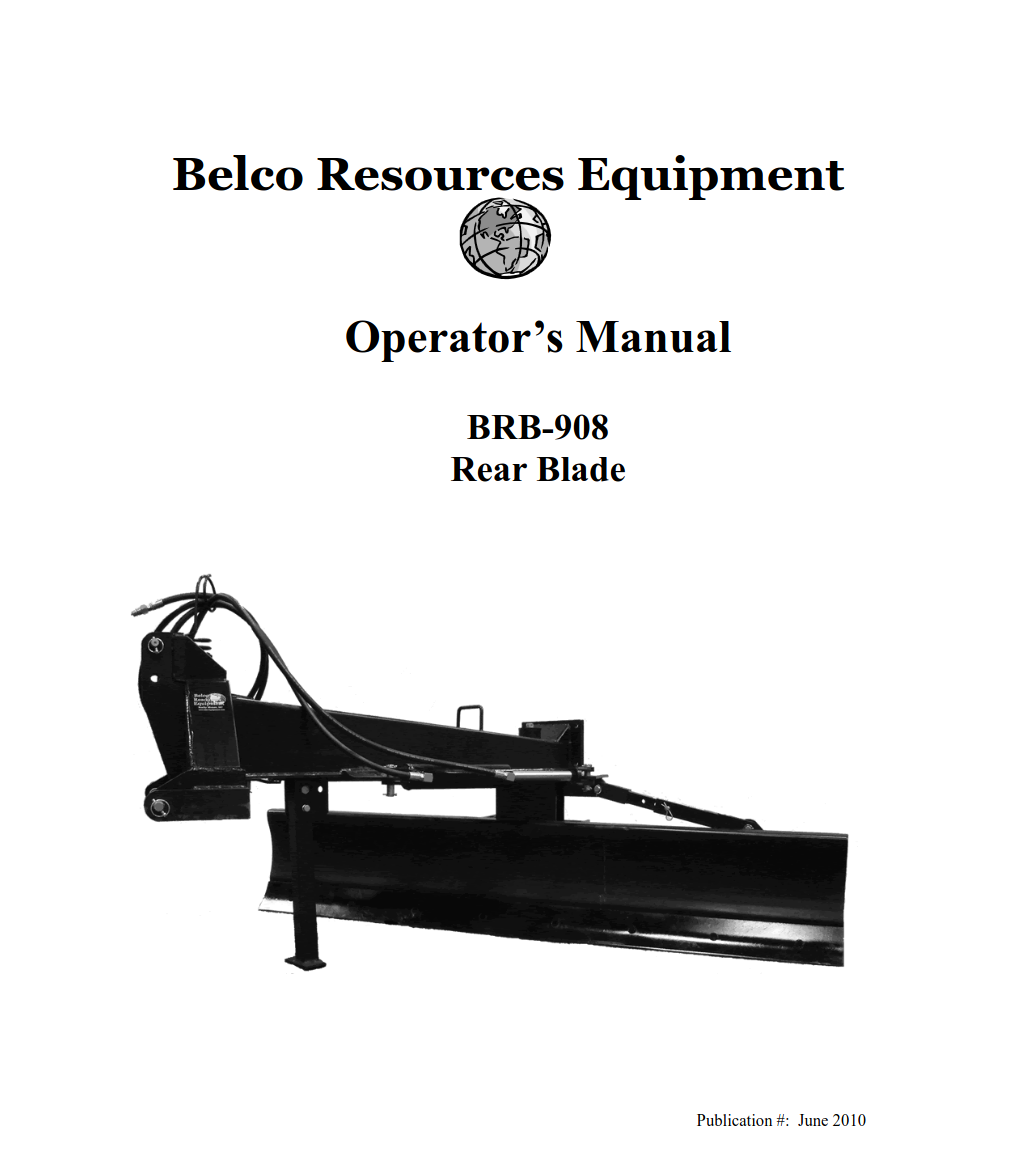

BRB-907 84" 19" 1/4" Yes Yes 90 908
BRB-908 96" 19" 1/4" Yes Yes 90 939
BRB-909 108" 19" 1/4" Yes Yes 90 979
